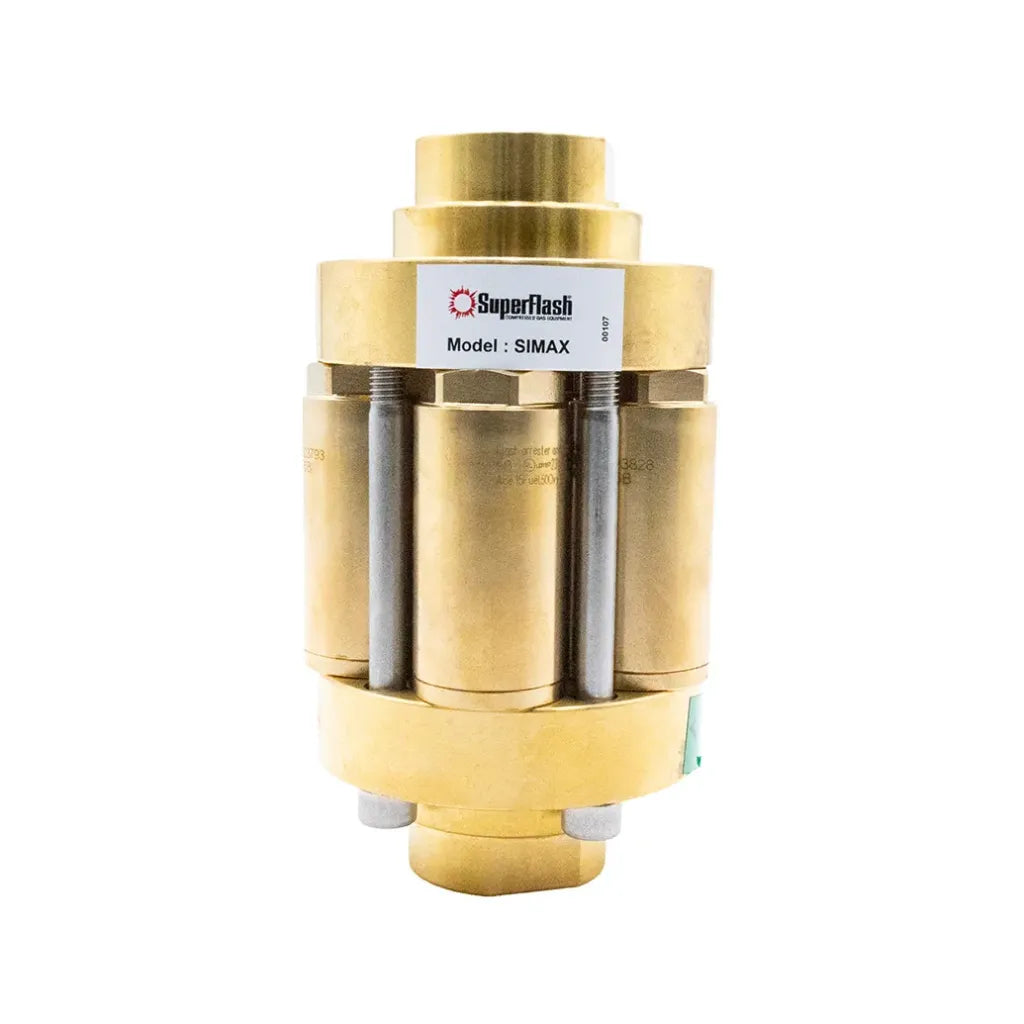

Bulgin Superflash® Simax 5 High Flow Fuel Gas Flashback Arrestor 1" NPT Female

The Bulgin SIMAX 5 is a high-capacity multi-function fuel flashback arrestor engineered for the protection of tapping points, distribution lines, and gas manifold systems. Manufactured in Germany and compliant with DIN EN ISO 5175-1 and AS 4603, it delivers comprehensive safety performance for industrial gas installations requiring high flow and robust protection. Designed for central gas supply and manifold applications, the SIMAX 5 integrates multiple safety elements into a single, serviceable unit, providing reliable protection against flashback, backflow, overheating, and contamination.

APPLICATIONS

• Tapping points

• Distribution lines

• Gas manifold systems

• Industrial welding

• Cutting operations

• Heating applications

• Central gas supply systems

SPECIFICATIONS

• Product Type: High Flow Fuel Flashback Arrestor

• Standards: DIN EN ISO 5175-1, AS 4603

• Material: Brass (2.0401) with Spring Steel (1.4310)

• Connection: 1" NPT RH Female

• Max Hose ID: 25 mm

• Cracking Pressure: 50 mbar position-independent

• Operating Temperature: –20 °C to +60 °C

• Dimensions: Ø 90 mm × 163 mm

• Weight: Approx. 3.9 kg

• Gas Compatibility: Acetylene, hydrogen, natural gas (methane), propane

• Function: Gas non-return valve, flame arrestor, temperature-sensitive cut-off valve, dust filter
