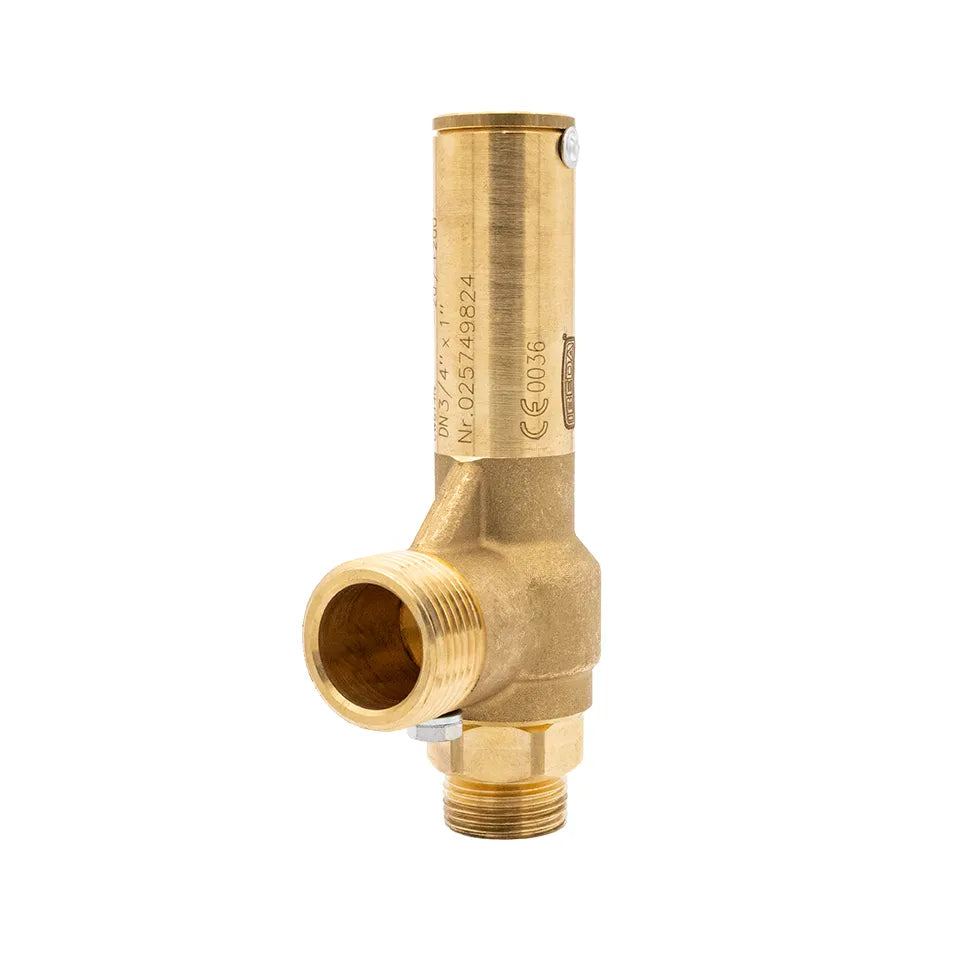

Bulgin G14/S Gas Pressure Relief Valve Brass 3/4" (20mm) BSP Male 16 Bar
- Connection Size: 3/4" (20mm) BSP Male
- Material: Brass
- Approvals: N/A
- $870.00
The Bulgin G14/S Gas Pressure Relief Valve is a high-performance safety relief valve designed for reliable overpressure protection in industrial gas systems. Featuring a lateral blow-off outlet for easy connection to a vent or discharge line, this valve delivers dependable fixed-pressure relief with robust brass construction for demanding environments. Built for use with oxygen and other technical gases, it offers durable operation with an FKM seal for chemical resistance and long service life.
APPLICATIONS
- Industrial gas systems requiring overpressure protection
- Oxygen and technical gas installations
- Safety discharge and vent line systems
- Controlled pressure relief applications
- Industrial gas and system safety applications
SPECIFICATIONS
- Model: G14/S
- Product Type: Gas Pressure Relief Valve
- Material: Brass
- Connection: 3/4" (20mm) BSP Male
- Outlet Connection: 1" BSP Male Lateral Outlet
- Blow-Off Pressure: 16 bar fixed
- Blow-Off Capacity: Approx. 1,558 m³/h (Air)
- Working Temperature: –20 to +200 °C
- Seal: FKM (Viton)
-
